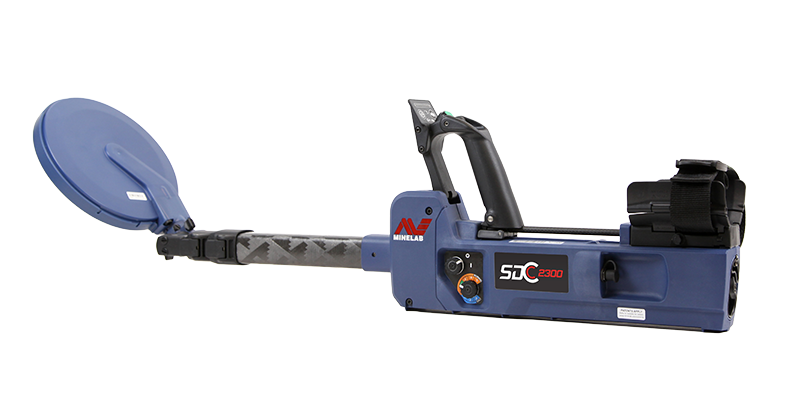

Minelab SDC 2300 is a compact, fully waterproof pulse induction gold detector built for tough environments. Its folding design and simple controls make it practical for travel while remaining capable in mineralised ground.
- Pulse Induction operation with MPF technology
- Fully waterproof to 3 m for wet ground and shallow water use
- Ultra-compact folding design for easy transport
- Simple Normal and Salt search modes
- Supplied with an 8" monoloop coil and wired headphones
Best for:
- Gold prospecting in wet, muddy, or variable conditions
- Users who need a portable, travel-friendly detector
- Highly mineralised ground where VLF detectors struggle
Not ideal for:
- Users wanting advanced controls or custom audio settings
- Those needing wireless headphones or visual target ID
Detailed Overview
The SDC 2300 is designed to solve the challenge of detecting gold in harsh and unpredictable environments. Its compact, military-style folding design allows it to be transported easily and deployed quickly, while its Pulse Induction platform focuses on stability in mineralised soils.
It performs well in locations such as wet fields, riverbanks, coastal areas, and remote UK terrain where durability and water resistance are essential. The fully waterproof construction allows confident use in rain, mud, and shallow water.
Key Features Explained
MPF Pulse Induction Technology
MPF technology is designed to manage mineralised ground effectively, helping maintain consistent performance without complex adjustments.
Fully Waterproof Construction
The SDC 2300 is waterproof to 3 m, allowing detecting in wet conditions and shallow water without additional housings.

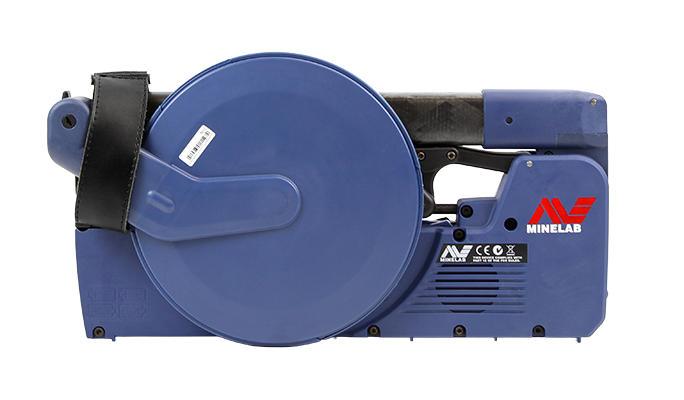

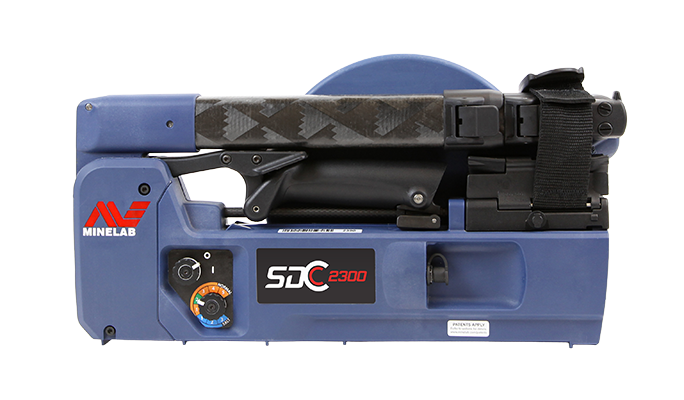

Compact Folding Design
The detector collapses down to just 40 cm, making it easy to pack into a rucksack or vehicle for travel and storage.
Simple Operating Controls
With Normal and Salt modes, fixed volume, and automatic noise cancel, the SDC 2300 prioritises ease of use over extensive customisation.
Specifications
| Specification | Details |
|---|---|
| Operation Frequency | Pulse Induction |
| Search Modes | Normal, Salt |
| Sensitivity | Normal (1–5), Salt (1–3) |
| Weight | 2.3 kg (5.1 lbs) |
| Length | Extended: 150 cm, Collapsed: 40 cm |
| Waterproof Rating | Fully waterproof to 3 m |

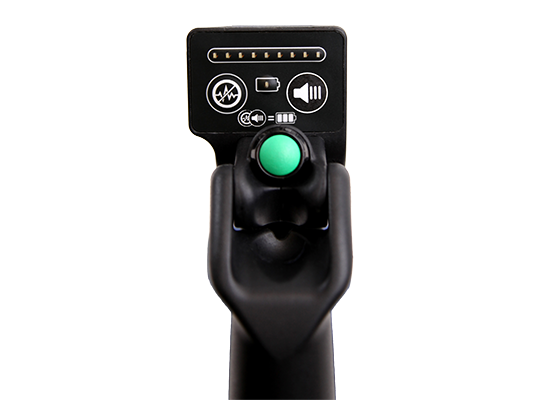

| Display | LED indicators |
| Warranty | 3 years (control box and coil) |
Compatibility & Setup
The SDC 2300 is supplied as a complete, integrated system with a fixed 8" monoloop coil. Setup is minimal, with automatic noise cancel and limited user adjustments.
Users should ensure the battery pack or C-cell batteries are correctly installed and sealed before use in wet conditions.
What’s Included
- 8" round monoloop coil
- SDC wired headphones
- Rechargeable lithium-ion battery pack
- Universal battery charger
FAQs
Is the SDC 2300 fully waterproof?
Yes, the detector is waterproof to 3 m and suitable for shallow water detecting.
Does it support wireless headphones?
No, the SDC 2300 uses wired headphones only.
What power options does it use?
It can run on the supplied rechargeable lithium-ion battery pack or 4 x C-type batteries.
Does it have target ID or depth indication?
No, the SDC 2300 does not include a depth indicator or visual target ID.
Is it suitable for salt environments?
Yes, it includes a dedicated Salt mode for saline ground conditions.
Can sensitivity be adjusted?
Yes, sensitivity is adjustable within Normal and Salt modes.
Does it have a screen?
It uses LED indicators rather than a full display screen.
What temperatures can it operate in?
The operating temperature range is 0°C to +50°C.
