The Minelab MANTICORE is a next-generation metal detector engineered for advanced performance across land, beach and shallow water. Built around Minelab’s Multi-IQ+® technology, it combines high sensitivity, detailed 2D target ID and modern ergonomics in a fully waterproof, lightweight design.
-
Multi-IQ+® technology with selectable single frequencies and simultaneous multi-frequency operation.
-
Advanced 2D target ID with ferrous and conductive target visualisation.
-
Fully waterproof to 5 m (IP68) for beach and shallow underwater detecting.
-
Lightweight 1.3 kg build for long detecting sessions.
-
Includes ML105 wireless headphones with low-latency audio.
Best for:
- Experienced detectorists seeking maximum target information
- UK detecting across fields, parks and beaches
- Users wanting a single detector for land and water use
Not ideal for:
- Beginners wanting minimal controls and setup
- Specialist deep gold prospecting applications
Detailed Overview
The MANTICORE is designed to improve target separation and identification in complex environments, including iron-contaminated ground and saltwater beaches. Multi-IQ+ processes multiple frequencies simultaneously or allows single-frequency selection, giving users flexibility based on site conditions.
It performs well in common UK scenarios such as pasture, ploughed land, parks and coastal beaches, with full waterproofing allowing confident use in wet weather, surf and shallow water.
Key Features Explained
Multi-IQ+® Frequency Technology
Multi-IQ+ allows simultaneous multi-frequency detection or operation at single frequencies ranging from 5 kHz to 40 kHz. This helps balance sensitivity to small targets with stable performance on deeper or higher-conductive items.
Advanced Search Modes
Dedicated All Terrain, Beach and Goldfield modes are optimised for specific environments, each with sub-profiles to suit trash levels, target conductivity and ground conditions.
2D Target Identification

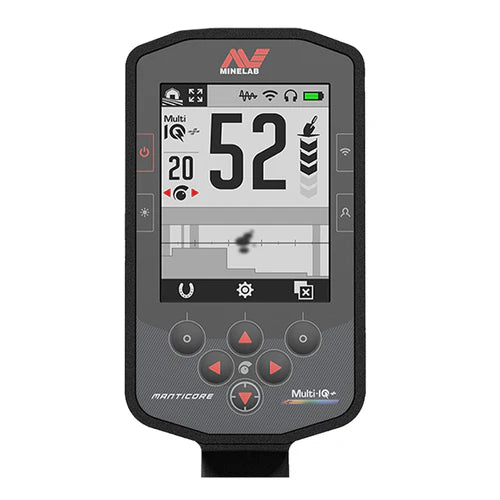

The full-colour display shows a two-dimensional target trace, combining ferrous and conductive data to help users better assess targets before digging.
Enhanced User Comfort
Features such as adjustable display and keypad backlighting, built-in flashlight and proportional vibration alerts improve usability during low-light or noisy detecting sessions.
Specifications
| Category |
Details |
| Search Modes |
All Metal, All Terrain, Beach, Goldfield, Custom |
| Operating Frequencies |
5, 10, 15, 20, 40 kHz & Multi-IQ+® |
| Sensitivity Range |
1 – 35 |
| Target ID System |
2D IDs: 100 Conductive / 50 Ferrous |
| Waterproof Rating |
IP68, waterproof to 5 m (16 ft) |
| Weight |
1.3 kg |
| Length |
63 cm collapsed / 144 cm extended |
| Display |
Full Colour LCD with adjustable backlight |
| Warranty |
3 years (control box and coil) |
Compatibility & Setup
The MANTICORE supports wired 3.5 mm headphones and Minelab low-latency wireless audio. It is supplied ready for use and allows both automatic and manual adjustment of key detection settings. Users should confirm compatibility when purchasing additional coils or accessories.
FAQs
-
Is the MANTICORE fully waterproof?
Yes, it is IP68 rated and waterproof to 5 metres.
-
Does it support single-frequency operation?
Yes, it can operate at individual frequencies or using Multi-IQ+.
-
Is this detector suitable for beginners?
It is designed primarily for experienced users due to its advanced features.
-
Can it be used on beaches?
Yes, dedicated Beach modes are included for dry sand, wet sand and surf.
-
What headphones are included?
ML105 low-latency wireless headphones are supplied.
-
Does it have vibration alerts?
Yes, proportional vibration alerts can be enabled or disabled.
-
Can sensitivity be adjusted?
Yes, sensitivity is adjustable from 1 to 35.
-
Is it suitable for shallow water detecting?
Yes, it is rated for use up to 5 metres underwater.
