The Minelab EQUINOX 800 is a proven, high-performance metal detector built for versatility across parks, fields, beaches and goldfields. Powered by Multi-IQ® technology with selectable single frequencies, it delivers strong target separation, detailed audio and reliable performance in a lightweight, waterproof design.
-
Multi-IQ® with selectable single frequencies from 4 kHz up to 40 kHz.
-
Dedicated Gold mode alongside Park, Field and Beach search modes.
-
Waterproof to 3 m for beach, surf and shallow water detecting.
-
Advanced audio options including Bluetooth® aptX™ Low Latency and Wi-Stream.
-
Supplied with ML 80 wireless headphones and WM 08 audio module.
Best for:
- Detectorists wanting one machine for land, beach and gold use
- UK detecting in parks, fields, pasture and coastal environments
- Users who value detailed audio and manual control options
Not ideal for:
- Those wanting the latest generation Equinox features
- Users needing full submersion beyond shallow water
Detailed Overview
The EQUINOX 800 is designed to handle a wide range of detecting scenarios without changing machines. Multi-IQ allows simultaneous multi-frequency operation, while single-frequency options provide additional control for specific targets or site conditions.
It performs reliably across typical UK detecting environments including farmland, pasture, parks and beaches, with waterproof construction allowing use in rain, surf and shallow water.
Key Features Explained
Multi-IQ® & Single Frequency Operation
The detector can operate using Multi-IQ for broad target coverage or switch to individual frequencies between 4 kHz and 40 kHz. This flexibility helps adapt to different target sizes and ground conditions.
Versatile Search Modes
Park, Field and Beach modes each include two profiles, alongside a dedicated Gold mode, All Metal mode and a custom user profile for personalised setups.
Advanced Audio Control
With multiple tone options up to 50 tones, adjustable ferrous volume and support for both Bluetooth® aptX™ Low Latency and Wi-Stream wireless audio, the EQUINOX 800 offers detailed audio feedback.
Lightweight & Waterproof Design
Weighing just 1.34 kg, the detector is comfortable for long sessions, while its 3 m waterproof rating supports beach and shallow water detecting.
Specifications
| Category |
Details |
| Search Modes |
Park 1 & 2, Field 1 & 2, Beach 1 & 2, Gold, All Metal, Custom |
| Operating Frequencies |
Multi-IQ®, 4, 5, 10, 15, 20, 40 kHz |
| Sensitivity Range |
1 – 25 |
| Discrimination |
50 segments, Iron Bias 0 – 9 |
| Target ID Range |
Ferrous: -19 to 0, Non-Ferrous: 1 to 40 |
| Waterproof Rating |
Waterproof to 3 m (10 ft) |
| Weight |
1.34 kg |
| Length |
112 cm collapsed / 144 cm extended |
| Battery |
Internal 3.7 V / 5000 mAh lithium-ion |
| Warranty |
3 years (control box and coil) |
Compatibility & Setup
The EQUINOX 800 supports wired 3.5 mm headphones, Bluetooth® aptX™ Low Latency audio and Minelab Wi-Stream wireless audio. Setup includes both automatic and manual noise cancel and sensitivity adjustments. Users should confirm compatibility when purchasing additional coils or accessories.
What’s Included
- Minelab EQUINOX 800 metal detector

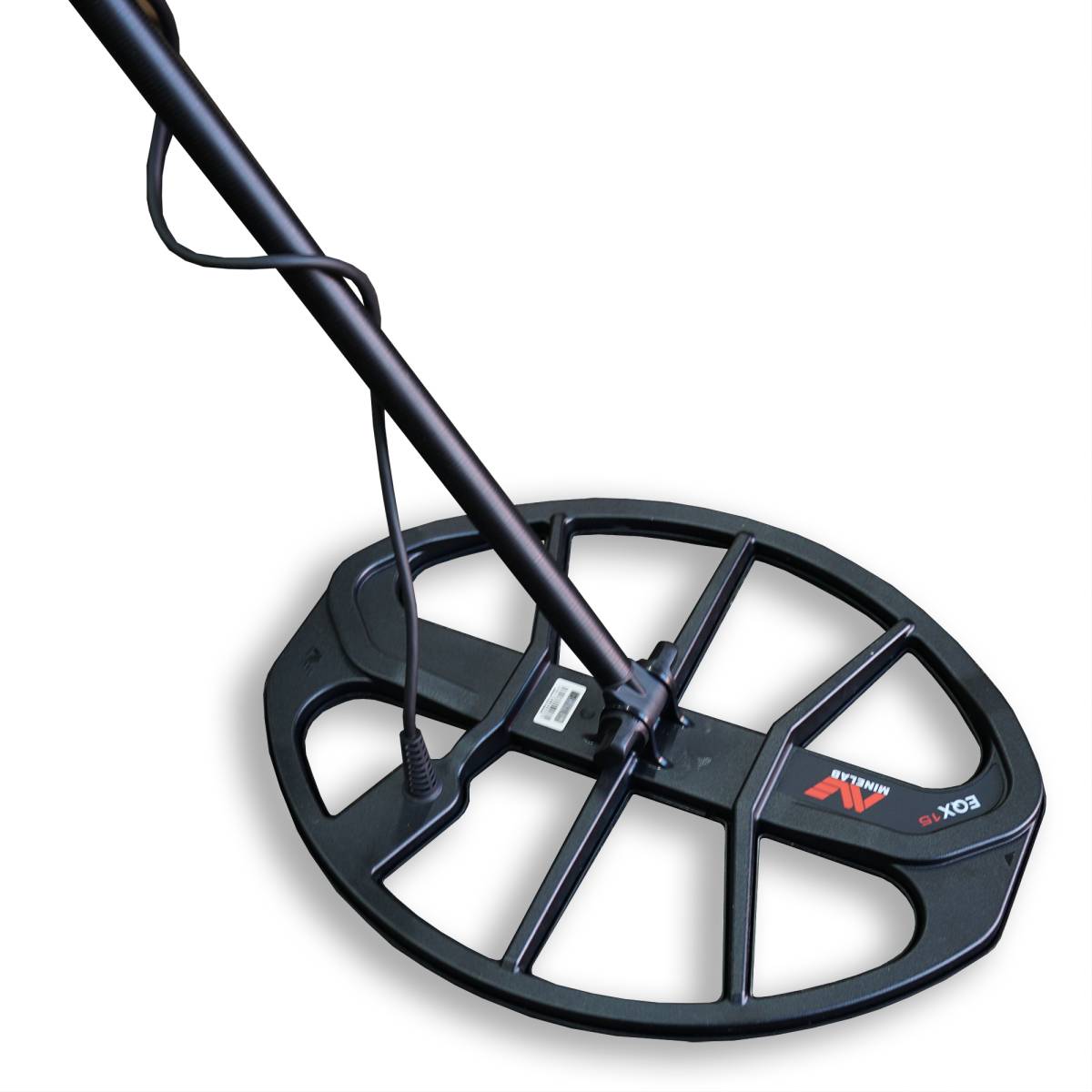

- EQX11 11" Double-D round coil
- ML 80 Bluetooth® wireless headphones
- WM 08 wireless audio module
- 2 × magnetic charging cables
- Internal rechargeable lithium-ion battery
FAQs
-
Is the EQUINOX 800 waterproof?
Yes, it is waterproof to 3 metres for shallow water use.
-
Does it support single-frequency operation?
Yes, it can run single frequencies or Multi-IQ.
-
Is there a dedicated Gold mode?
Yes, a specific Gold search mode is included.
-
What wireless audio options are supported?
Bluetooth® aptX™ Low Latency and Wi-Stream are both supported.
-
Are wireless headphones included?
Yes, ML 80 Bluetooth® wireless headphones are supplied.
-
Can iron bias be adjusted?
Yes, iron bias can be adjusted from 0 to 9.
-
Is this suitable for beginners?
It is best suited to users with some detecting experience.
-
Can it be used on beaches?
Yes, it includes dedicated Beach modes and is waterproof.
