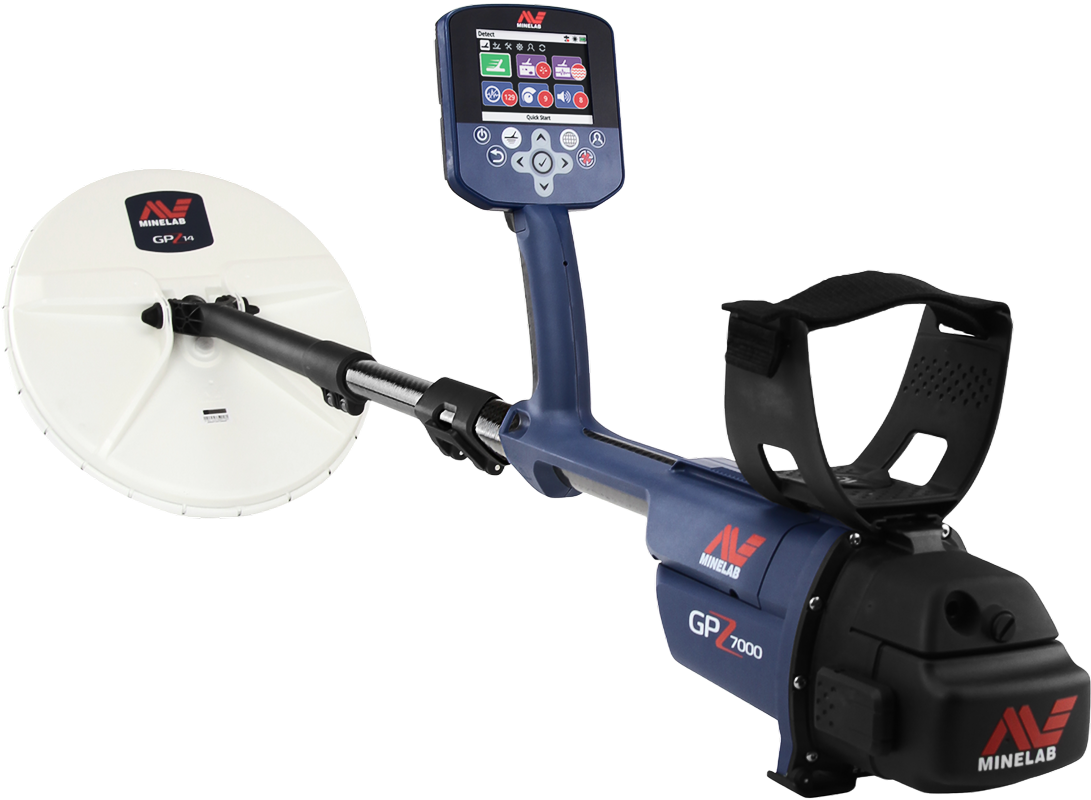

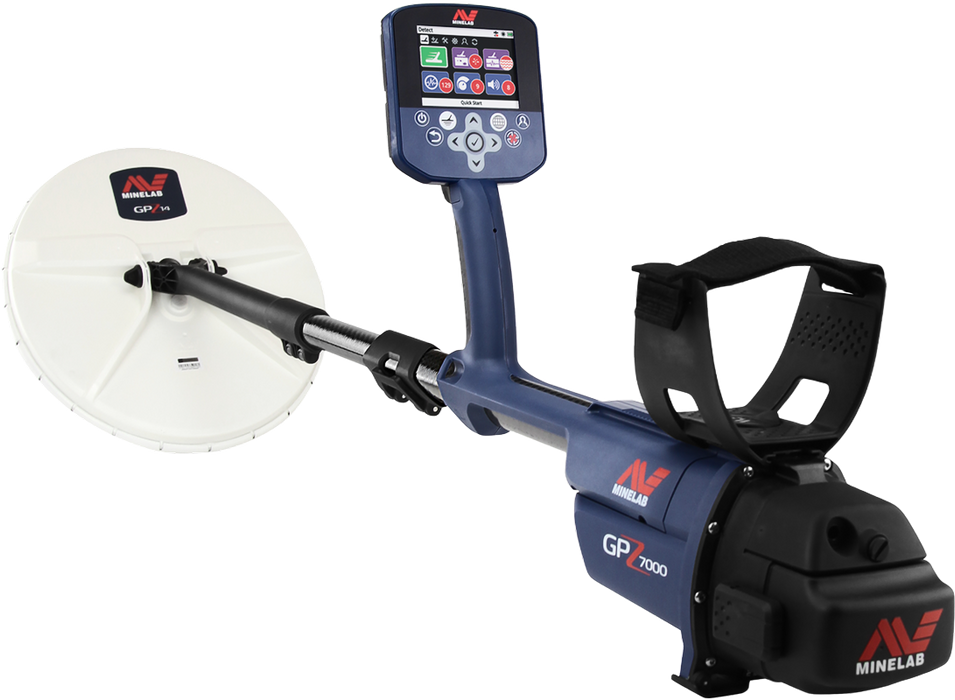

Minelab GPZ 7000 is a high-performance gold detector built for serious prospecting in challenging ground. Using advanced ZVT technology and a Super-D coil, it is designed to operate effectively where conventional detectors struggle.
Best for:
Not ideal for:
The GPZ 7000 is designed to solve the challenge of detecting in extreme ground conditions where mineralisation limits traditional detection methods. By combining ZVT (Zero Voltage Transmission) technology with Minelab’s Super-D coil, it focuses on ground stability while maintaining sensitivity across varied soil types.
It performs well in remote and demanding environments such as mineralised UK soils, open moorland, and historic prospecting areas. The included harness and swing arm help manage the detector’s weight during extended use.
ZVT technology differs from conventional pulse induction by maintaining a continuous signal, helping the detector manage mineralised ground while supporting detection at varying depths.
The supplied Super-D coil uses a unique configuration intended to improve ground handling and signal stability compared to traditional mono or DD coils.
Gold modes (High Yield, General, Extra Deep) and selectable ground types allow users to adjust operation based on soil conditions and target response.

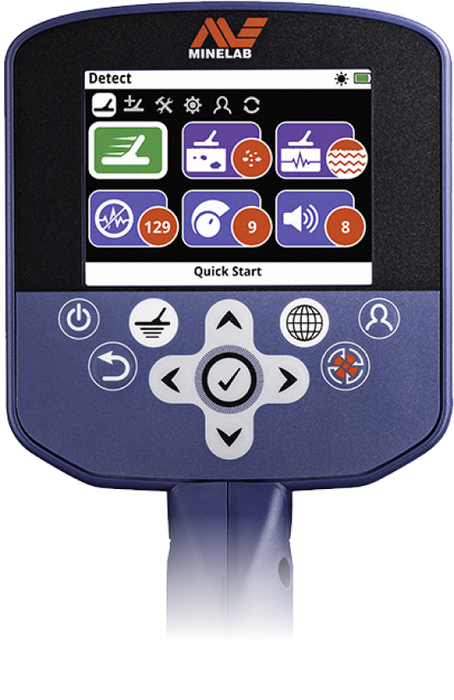

Wi-Stream wireless audio reduces cable clutter, while the full colour LCD and adjustable backlighting support visibility in different lighting conditions.
| Specification | Details |
|---|---|
| Operation Frequency | Pulse Induction |
| Search Modes | Gold (High Yield, General, Extra Deep), Ground Type (Normal, Difficult, Severe) |
| Sensitivity | 1–20 |
| Weight | 3.32 kg (7.32 lbs) |

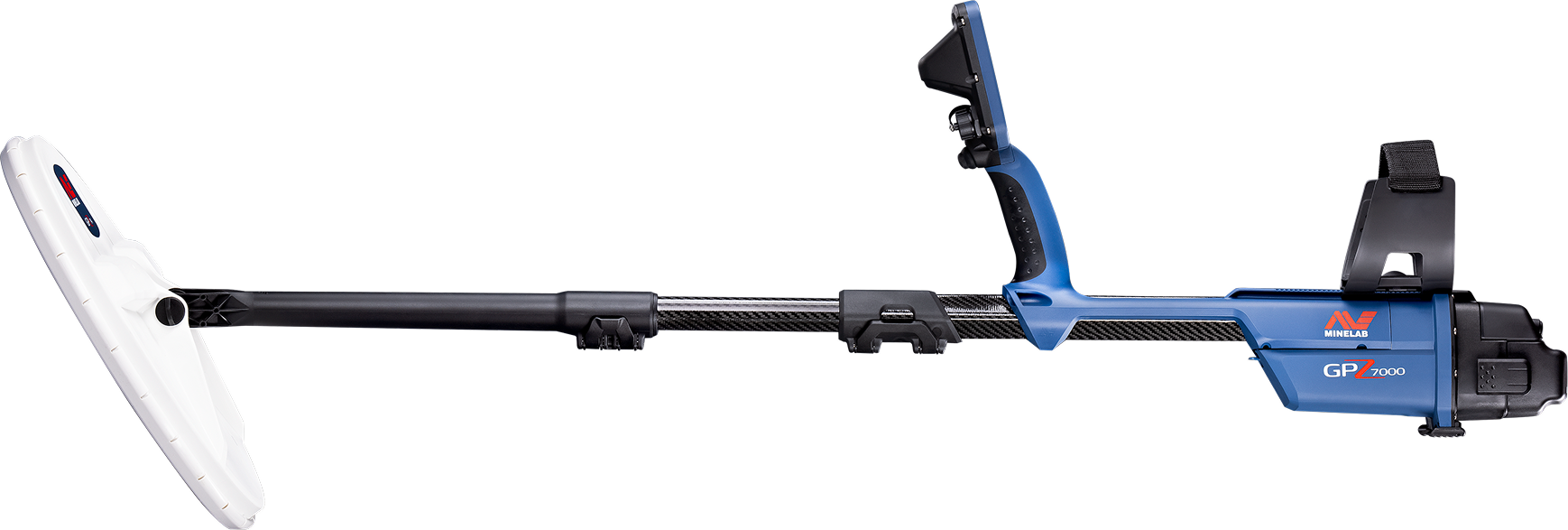

| Length | Extended: 152.6 cm, Collapsed: 117 cm |
| Waterproof | Coil waterproof to 1 m |
| Display | Full colour LCD with adjustable backlight |
| Warranty | 3 years (control box and coil) |
The GPZ 7000 is supplied with the GPZ14 Super-D coil and is designed to be used with Minelab-compatible GPZ accessories. Due to its weight, correct adjustment of the Pro-Swing 45 harness and swing arm is important for comfort.
Users should verify compatibility before using optional or third-party accessories.
Is the GPZ 7000 fully waterproof?
The search coil is waterproof to 1 m. The control box is not rated as waterproof.
Does it have a depth indicator or iron bias?
No, the GPZ 7000 does not include a depth indicator or iron bias feature.
What type of audio outputs are supported?
It supports wired 6.35 mm headphones and wireless audio via the WM 12 Wi-Stream module.
Is this detector suitable for beginners?
It is generally better suited to experienced users due to its size, weight, and advanced controls.
Does it include GPS?
Yes, it features GPSi for mapping and tracking.
Can sensitivity be adjusted?
Yes, sensitivity is adjustable from levels 1 to 20.
What temperatures can it operate in?
The operating temperature range is 0°C to +50°C.
Is a harness required?
A harness is supplied and recommended to help manage weight during extended detecting sessions.
