The Minelab EQUINOX 800 is a proven, high-performance metal detector built for versatility across parks, fields, beaches and goldfields. Powered by Multi-IQ® technology with selectable single frequencies, it delivers strong target separation, detailed audio and reliable performance in a lightweight, waterproof design.
Best for:
Not ideal for:
The EQUINOX 800 is designed to handle a wide range of detecting scenarios without changing machines. Multi-IQ allows simultaneous multi-frequency operation, while single-frequency options provide additional control for specific targets or site conditions.
It performs reliably across typical UK detecting environments including farmland, pasture, parks and beaches, with waterproof construction allowing use in rain, surf and shallow water.
The detector can operate using Multi-IQ for broad target coverage or switch to individual frequencies between 4 kHz and 40 kHz. This flexibility helps adapt to different target sizes and ground conditions.
Park, Field and Beach modes each include two profiles, alongside a dedicated Gold mode, All Metal mode and a custom user profile for personalised setups.

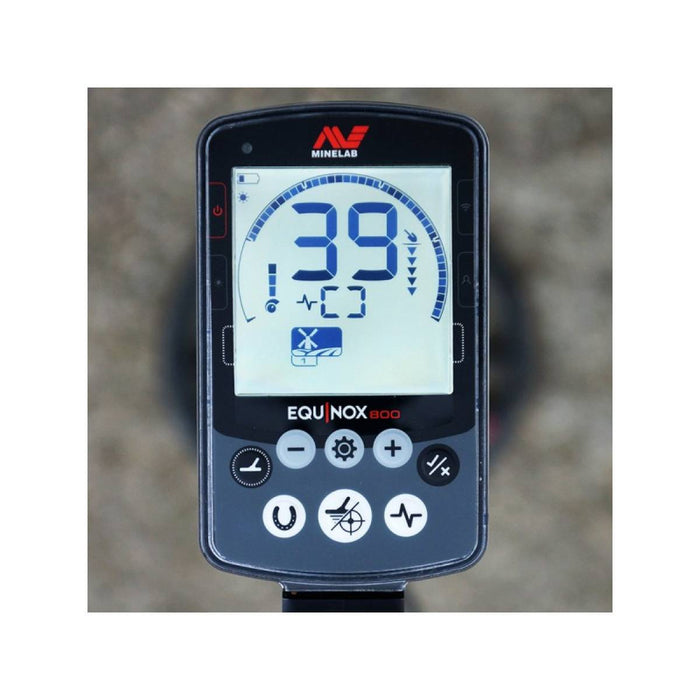

With multiple tone options up to 50 tones, adjustable ferrous volume and support for both Bluetooth® aptX™ Low Latency and Wi-Stream wireless audio, the EQUINOX 800 offers detailed audio feedback.
Weighing just 1.34 kg, the detector is comfortable for long sessions, while its 3 m waterproof rating supports beach and shallow water detecting.
| Category | Details |
|---|---|
| Search Modes | Park 1 & 2, Field 1 & 2, Beach 1 & 2, Gold, All Metal, Custom |
| Operating Frequencies | Multi-IQ®, 4, 5, 10, 15, 20, 40 kHz |
| Sensitivity Range | 1 – 25 |
| Discrimination | 50 segments, Iron Bias 0 – 9 |
| Target ID Range | Ferrous: -19 to 0, Non-Ferrous: 1 to 40 |
| Waterproof Rating | Waterproof to 3 m (10 ft) |
| Weight | 1.34 kg |
| Length | 112 cm collapsed / 144 cm extended |
| Battery | Internal 3.7 V / 5000 mAh lithium-ion |
| Warranty | 3 years (control box and coil) |
The EQUINOX 800 supports wired 3.5 mm headphones, Bluetooth® aptX™ Low Latency audio and Minelab Wi-Stream wireless audio. Setup includes both automatic and manual noise cancel and sensitivity adjustments. Users should confirm compatibility when purchasing additional coils or accessories.
